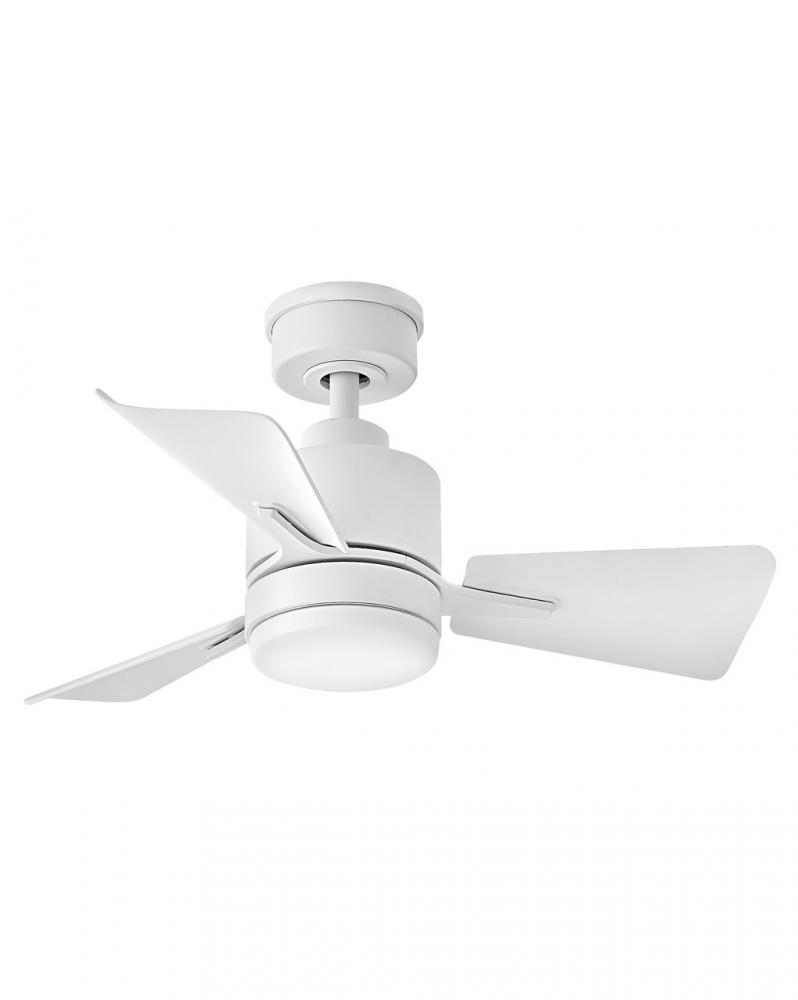

Product Overview

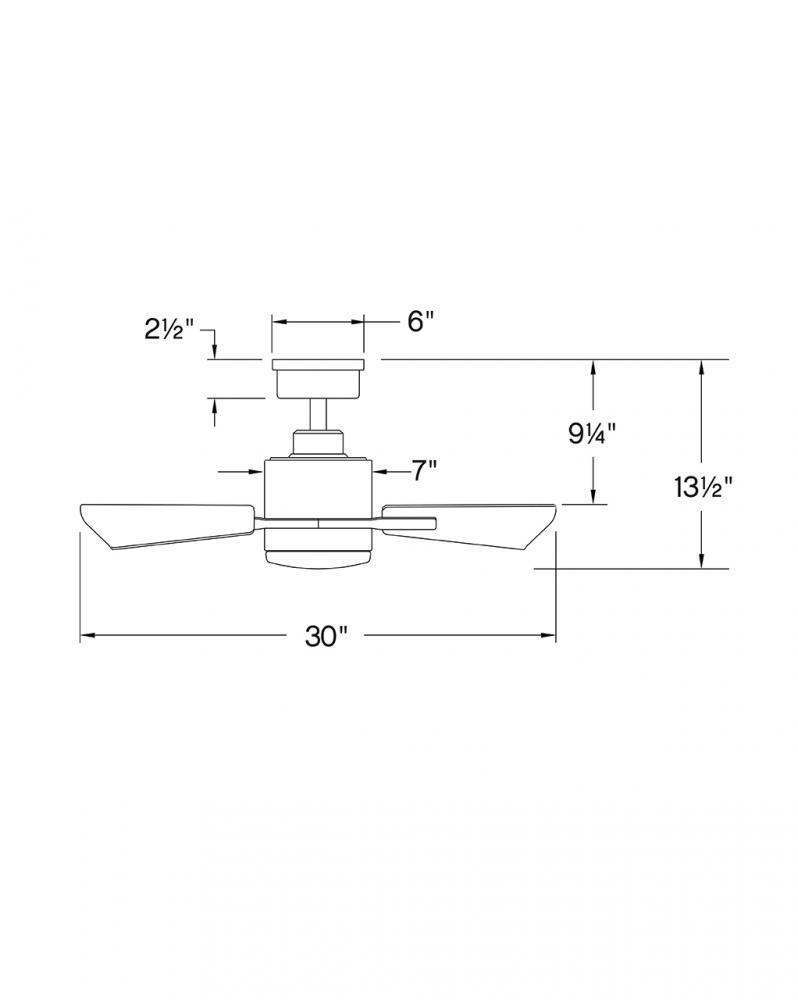

Part of the Regency Series, Atom's compact modern profile complements functionality with classic finishes to perfectly accentuate smaller spaces. Its damp-rated design is suitable for both interior and covered outdoor areas. Dimmable Integrated LEDs emit warm, even light, creating a comfortable atmosphere. Operated by the HIRO control, the 3-speed AC motor can be WiFi enabled with the purchase of an additional control accessory. Atom mounts directly to its canopy or with the included downrod for dual mount capability. This will result in an overall fan height of 10" and a ceiling-to-blade height of 5 3/4�.

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

White

Style:

Traditional

Option:

Title 24

Damp Rated

Refinement Options

Category:

Fan

Finish:

Matte White

Style:

Traditional

Family:

Atom

Glass:

Etched Opal

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow Efficiency:

2845

Amperage:

0.46

Blade Finish:

Matte White

Blade Pitch:

13

Blade Span:

30

Blades Included:

Yes

Bulb Dimmable:

Yes - CL Type Dimmer (SSL7A)

Bulb Hours:

50000

Bulb Type:

LED

Canopy:

6 Dia. x 2.25 D

Introduction Date:

01/01/2024

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

1320

Material:

Steel

Motor Size:

153 x 12

Motor Type:

AC

Ship Carton Height:

9.53

Ship Carton Length:

17.44

Ship Carton Width:

16.38

Ship Weight:

15.26

Vendor Ship Method:

Parcel

Weight:

13.23

Airflow Avg:

2114

AMPS Avg:

0.34

Avg Energy Use:

36

Blade Material:

Composite

Blade Options Available:

No

Blade To Ceiling Height:

10

Blades Reversible:

No

Bulb CRI:

90

Bulb Included:

Yes

Control Type:

HIRO Control - 3 Speed Manual Reversing

Country of Origin:

China

DM Airflow Avg:

1690

DM Airflow High:

2314

DM AMPS Avg:

0.32

DM AMPS High:

0.43

DM Avg Energy Use:

30

DM Efficiency Avg:

56

DM Efficiency High:

49.2

DM Energy Cost Avg:

9

DM Energy Cost High:

13.18

DM Energy Use High:

47

DM RPMS Avg:

100

DM RPMS High:

223

Dual Mount:

Yes

Efficiency Avg:

59

Efficiency High:

52

Energy Cost Avg:

10

Energy Cost High:

15.36

Energy Use High:

54.8

Fan Control:

Yes

Flush Mount Fan:

No

Incandescent Equivalency:

100 W

Light Kit Adaptable:

No

Light Source:

Integrated LED

Location Rating:

Damp Rated

Max Wattage:

16 W

Motor Fan Speed:

3

Number of Blades:

3

Operating Frequency:

60

Prop 65 Description:

View

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

174

RPMS High:

234

Safety Rating:

UL Approved, C-US Approved

Single Power Switch:

No

Slope:

20

Sloped Ceiling Adaptable:

Yes

Stand By Power:

0.29

Title 24:

Yes

WIFI Control Included:

Yes

WIFI Control Optional:

No

Blades, controls, switches, capacitors and hardware carry a 1-year warranty

Classic, elegant lines and timeless details enhance a traditional space

Fan Control included, HIRO Control - 3 Speed Reversing

Fan mounts directly to canopy or with an included downrod for dual mount capability

Fans should be installed at a minimum of 7 feet from the floor

For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.

LED components carry a 5-year limited warranty

Motor carries a lifetime warranty

Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.

The Regency Series features a range of traditional ceiling fans designed to enhance a wide variety of spaces with ease.

This item includes a 4.5" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.

This item includes a light kit cover

This item may be hung on a sloped ceiling

WiFi compatible with included fan control
