Aire Deluxe - 52 inch - GR with WE Blades : GFN8

Return to Catalog

Part Number: GFN8 / Vendor ID #: 90

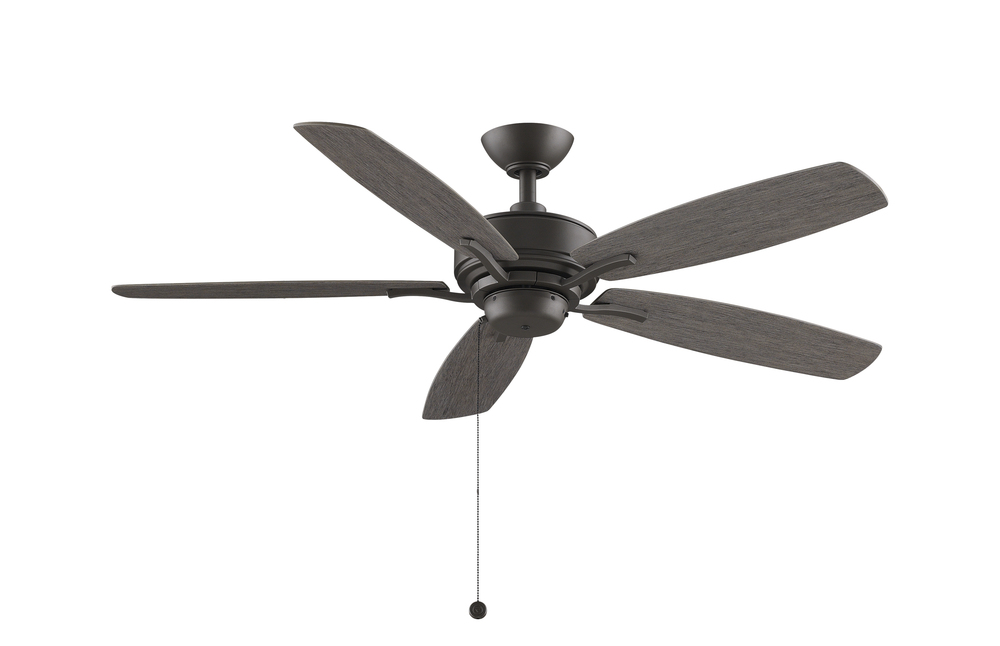

Aire Deluxe - 52 inch - GR with WE Blades

$232.00

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer availability unknown.

Dimensions

Height: 12.77"

Width: 52.00"

Length: 52.00"

Info & Guides

Product Overview

Aire Deluxe from Fanimation is an exceptional transitional design for any and every indoor space. Available in 52 and 44 inch blade sweeps, three different finishes, a variety of blade finishes, and with the option of a light kit. With all of the possibilities, there is an Aire Deluxe for everyone. The Aire Deluxe features an AC motor that operates on three forward and three reverse speeds. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Energy Information at High Speed

Airflow:

4908 Cubic Feet per Minute

Electricity Rate:

55 Watts (excluded lights)

Airflow Efficiency:

89 Cubic Feet Per Minute Per Watt

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Gray

Miscellaneous

Style:

Traditional

Option:

Dry Rated

Voltage:

10-99

Number of Blades:

5 Blades

Location Rating:

Dry Rated

Refinement Options

Category:

Fan-Uni

Finish:

Matte Greige

Option:

Dry Rated

Family:

Aire Deluxe

Voltage:

120 V

Additional Info:

3 speed AC motor with reverse switch

3941 CFM on High

Lifetime Limited Warranty

Pull Chain Operated

Set of 5 reversible 52 inch blades and (2) 9 watt LED bulbs and light kit included

WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM:

4908

Air Flow Efficiency:

Amperage:

0.46

Blade Finish:

Weathered Wood

Blade Pitch:

Canopy:

5.91 Dia x 2.13 H

Diameter:

9.06

Down Rod Included:

4.5

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

Light Kit Included:

Material:

Wood

Motor Fan Speed:

Motor RPM:

158

Motor Size:

153 X 15

Motor Type:

Ship Carton Height:

9.3

Ship Carton Length:

Ship Carton Width:

10.9

Ship Weight:

17.67

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

15.36

Airflow Efficiency Low:

183

Airflow Efficiency Medium:

126

Avg Airflow Efficiency:

102

Avg CFM Energy:

3496

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Paper Overlay

Blade Material:

Wood

Blade Reversible:

Blade Sweep:

Canopy Diameter:

5.91 Dia

Canopy Height:

2.13 H

Cap Included:

Carton Cubic Feet:

1.35

Cartons Per Unit:

Case Height:

9.3

Case Length:

Case Quantity:

Case Weight Pounds:

17.67

Case Width:

10.9

CEC Uploaded:

Yes

Ceiling To Blade Edge:

10.59

CFM Low:

1897

CFM Medium:

3288

Compatible Accessories:

CCK8002GRW, DR1-12GR, DR1-18GR, DR1-24GR, DR1-36GR, DR1-48GR, DR1-60GR, DR1-72GR, DR1-CPGR, SCK1-52GR

Compatible Controls:

BTCR9, BTR9, CR500, CRL4WH, WFR50

Compatible Wall Controls:

CW5LA, CW5WH, CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH

Country of Origin:

China

Current Draw High:

0.46

Current Draw Low:

0.2

Current Draw Medium:

0.33

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

4.5

Dry Rated:

Yes

Exempt from DOE Procedure:

Fan Energy Star:

Housing Diameter:

9.06

Included Control Type:

Pull Chain

Leadwire:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Switch Housing

RPM High (VI):

158

RPM Low (II):

RPM Medium (IV):

113

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

Watts Medium:

3 Speed Ac Motor With Reverse Switch

3941 Cfm On High

Lifetime Limited Warranty

Pull Chain Operated

Set Of 5 Reversible 52 Inch Blades And (2) 9 Watt Led Bulbs And Light Kit Included

Wifi Or Bluetooth Compatible (required Controls Sold Separately)
