Part Number: K7HV / Vendor ID #: 90

Spitfire Motor - MW

$475.00

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 1933 items available.

Dimensions

Height: 12.00"

Width: 0.00"

Length: 48.00"

Info & Guides

Product Overview

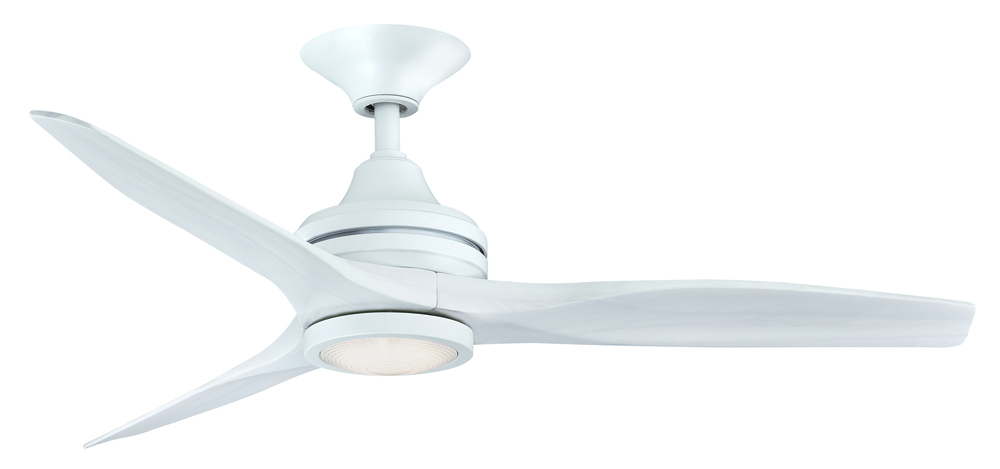

The Spitfire Custom features an exquisite three bladed design with many rich finish offerings to choose from. It is available in a 48 or 60 inch blade sweep and features an optional LED light kit. Handheld remote included. *Damp rated for indoor or outdoor use. *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Energy Information at High Speed

Airflow:

6641 Cubic Feet per Minute

Electricity Rate:

61 Watts (excluded lights)

Airflow Efficiency:

108 Cubic Feet Per Minute Per Watt

Standard Information

Category:

Fans

Subcategory:

Fan Motor Without Blades

Finish:

White

Style:

Traditional

Option:

Damp Rated

Voltage:

10-99

Number of Blades:

3 Blades

Location Rating:

Damp Rated

Refinement Options

Category:

Fan-Multi

Finish:

Matte White

Option:

Damp

Family:

Spitfire

Voltage:

120 V

Additional Info:

3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features

5227 CFM on High

Limited Lifetime Warranty

Set of 3 Damp Rated blades with multiple finishes and 18 watt LED light kit available (sold separate

TR500 handheld remote with 23A battery included

WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM:

6641

Air Flow Efficiency:

108

Amperage:

0.52

Blade Pitch:

Canopy:

7.09 Dia x 2.2 H

Diameter:

8.07

Down Rod Included:

4.5

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

48, 60

Light Kit Included:

Max Length:

Max Width:

Motor Fan Speed:

Motor RPM:

130

Motor Size:

188 x 25

Motor Type:

Remote Control Included:

TR500

Ship Carton Height:

10.91

Ship Carton Length:

14.49

Ship Carton Width:

10.47

Ship Weight:

17.85

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

16.34

Airflow Efficiency Low:

175

Airflow Efficiency Medium:

128

Avg Airflow Efficiency:

Avg CFM Energy:

3776

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Canopy Diameter:

7.09 Dia

Canopy Height:

2.2 H

Cap Included:

Carton Cubic Feet:

0.96

Cartons Per Unit:

Case Height:

10.91

Case Length:

14.49

Case Quantity:

Case Weight Pounds:

17.85

Case Width:

10.47

CEC Uploaded:

Yes

Ceiling To Blade Edge:

Ceiling To Bottom:

13.71

CFM Low:

2433

CFM Medium:

4614

Compatible Accessories:

DR1-12MW, DR1-18MW, DR1-24MW, DR1-36MW, DR1-48MW, DR1-60MW, DR1-72MW, DR1-CPMW, SCK1-52MW, CCK6721MW

Compatible Blades:

B6720BL, B6720BN, B6720DF, B6720DWA, B6720N, B6720WE, B6720WK, B6720WW, B6720-48BL, B6720-48BN, B6720-48DF, B6720-48DWA, B6720-48MW, B6720-48N, B6720-48WE, B6720-48WK, B6720-48WW

Compatible Controls:

BTCR9, BTR9, CRL4WH, WFR50

Compatible Light Kits:

LK6721BMW

Compatible Wall Controls:

CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH

Country of Origin:

China

Current Draw High:

0.52

Current Draw Low:

0.25

Current Draw Medium:

0.4

Damp Rated:

Yes

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

4.5

Exempt from DOE Procedure:

Fan Energy Star:

Housing Diameter:

8.07

Included Control:

TR500

Included Control Type:

Handheld

Leadwire:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Motor Housing

RPM High (VI):

130

RPM Low (II):

RPM Medium (IV):

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

Watts Medium:

3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features

5227 Cfm On High

Limited Lifetime Warranty

Set Of (3) Damp Rated Blades With Multiple Finishes Available And 18 Watt Led Light Kit Available (sold Separately)

Tr500 Handheld Remote With 23a Battery Included

Wifi Or Bluetooth Compatible (required Controls Sold Separately)
