5" LED Outdoor Up/Down Cylinder : 1RH1H

Return to Catalog

Part Number: 1RH1H / Vendor ID #: 149

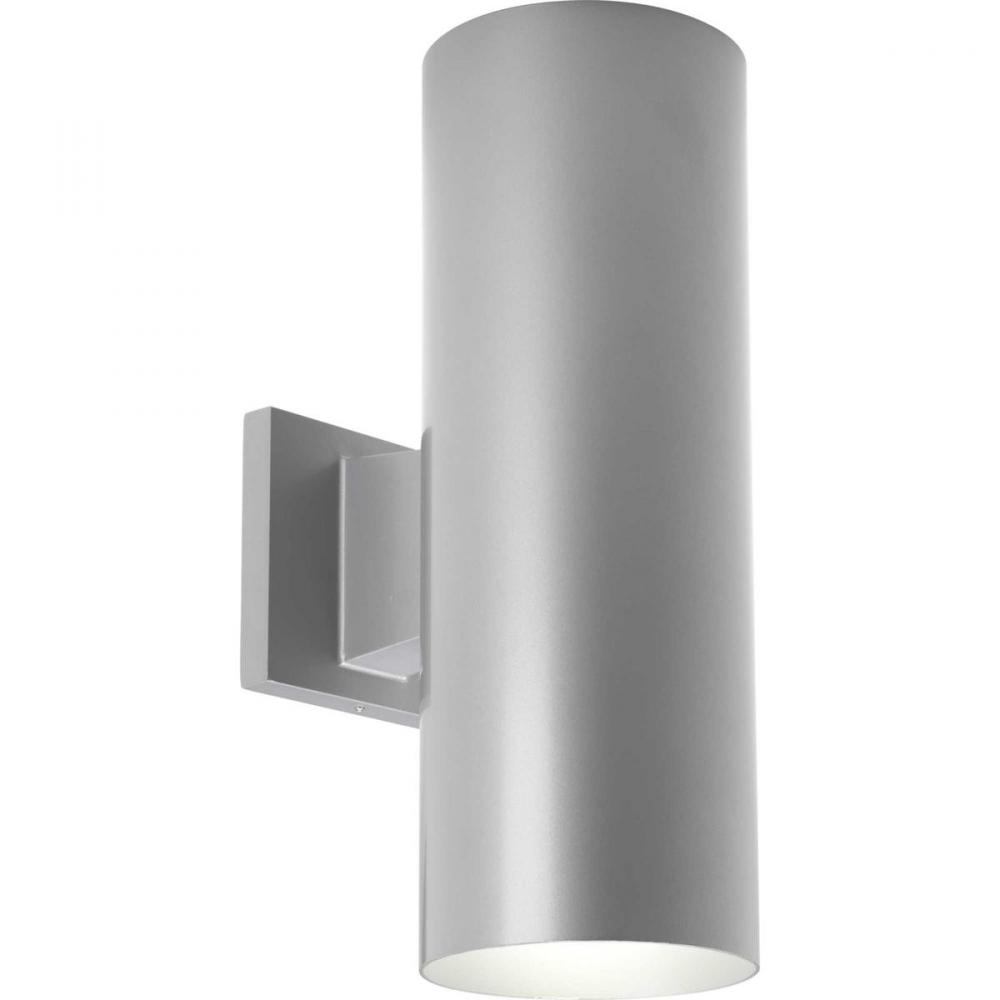

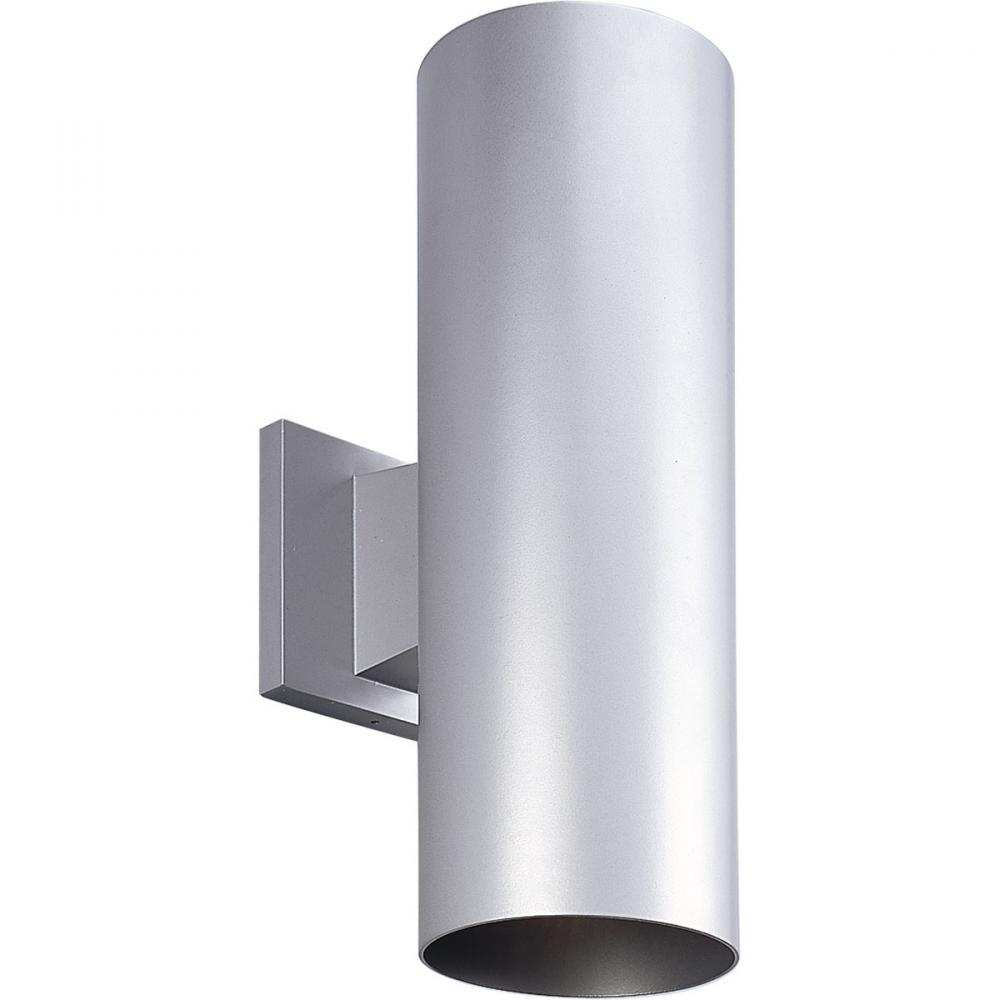

5" LED Outdoor Up/Down Cylinder

$264.00

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 234 items available.

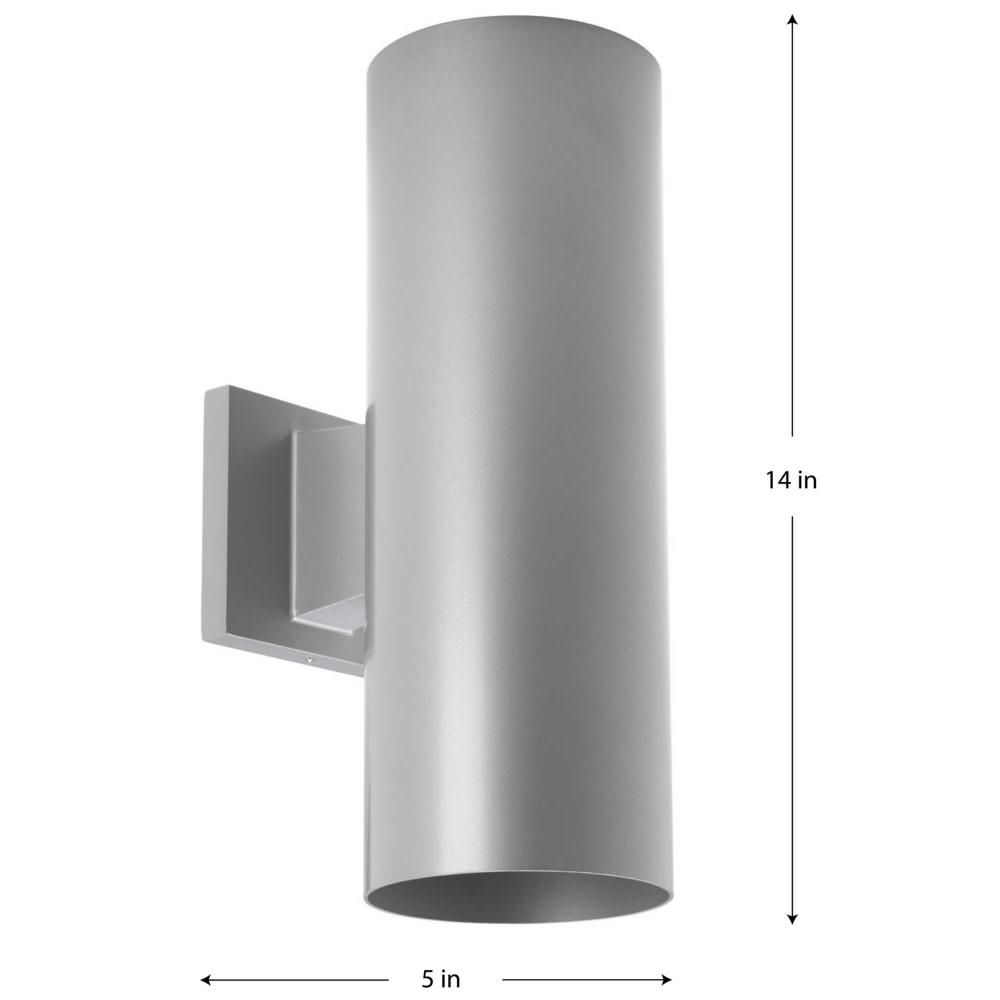

Dimensions

Height: 14.00"

Width: 8.88"

Length: 5.00"

Info & Guides

Included Items

Bulbs: (2) x 16 Watt Module

Finish: Metallic Gray

Lamp Wattage: 16

Product Overview

5" up/down wall cylinder 5" LED up down wall cylinder - wall lantern in Metallic Gray. The P5675 Series are ideal for a wide variety of interior and exterior applications including residential and commercial. The Cylinders feature a 120V alternating current source and eliminates the need for a traditional LED driver. This modular approach results in an encapsulated luminaire that unites performance, cost and safety benefits. Specify P860045 top cover lens for use in wet locations.

Standard Information

Category:

Sconces

Subcategory:

Wall Lights

Outdoor Wall Lights

Finish:

Gray

Style:

Contemporary

Transitional

Option:

Energy Efficient

Title 24

Outdoor

Wet Rated

Damp Rated

LED

Title 20

Voltage:

100-120

Lumens:

450-800

Mount Type:

Flush Mount

Kelvin:

2501-3000

Location Rating:

Wet Rated

Refinement Options

Category:

Outdoor

Finish:

Metallic Gray

Style:

Modern;Transitional

Option:

Damp Rated

Energy Efficient

Title 20

Title 24

Family:

Cylinder

Voltage:

120

Number of Bulbs:

2 Bulbs

Backplate Height:

4.50

Backplate Width:

4.50

Bulb Hours:

60000

Bulb Type:

Module

Depth:

8.88

Height To Center of Outlet:

8.00

Introduction Date:

01/01/2015

Kelvin:

3000

Keyword(s):

lantern;exterior light;outdoor light

Length:

5.00

Lumens / Light Output:

1100

Material:

Die Cast and Extruded Aluminum

Ship Carton Height:

15.62

Ship Carton Length:

9.06

Ship Carton Width:

6.25

Ship Weight:

4.69

Special Features:

Metallic Gray finish.;Powder coat finish.;Die-cast aluminum construction with durable powder coated finish;1,100 lumens 26 lumens/watt per module (delivered);3000K color temperature, 90+ CRI;Meets California Title 24 high efficacy requirements for outdoor

Vendor Ship Method:

Non UPS Shippable False

Warranty:

5-year Limited

Weight:

2.80

Wire Included:

6 in

Americans with Disabilities Act:

Backplate Depth:

2.95

Bulb Base:

Module

Bulb CRI:

90 CRI

Bulb Included:

Yes

Can be Mounted Up or Down:

Canopy Shape:

Square

Certified Listed Location:

Damp Location Listed

Construction Material Main Part:

Construction

Country of Origin:

Dark Sky:

Design Series:

Dimming Compatability:

Lutron_Diva DVELV-300P;Lutron_Nova NTELV-300;Lutron_Vierti VTELV-600;Lutron_Maestro MAELV-600;Lutron_spacer/system SPSELV-600;Leviton_Renoir II AWRMG-EAW;Leviton_6615-P

Dimming Protocol:

ELV/Reverse Phase

Dimming Range:

10%

Energy Efficient:

Yes

Energy Star:

Finish Type:

Powder Coat Paint

Frequency Rating:

60 Hz

Grounded Convenience Outlet included:

JA8:

Lamp Type Actual:

LED

Lamp Type Basic:

Solid State

Lamp Wattage:

Lumens per Watt:

26.00

Mount Location:

Wall

MTO:

Operating Temperature Celcius Max:

30 °C

Prop 65:

View

Prop 65 Description:

View

Room Type:

Outdoor

Safety Rating:

cCSAus

Starting Temperature Minimum:

-30 °C

Sub Brand:

Progress LED

Title 20:

Yes

Title 24:

Yes

Weight of Fixture Exceeds NEC Limits:

Width Diameter:

5 in Depth
